Memory Consistency Models

Sequential Consistency (SC)

info

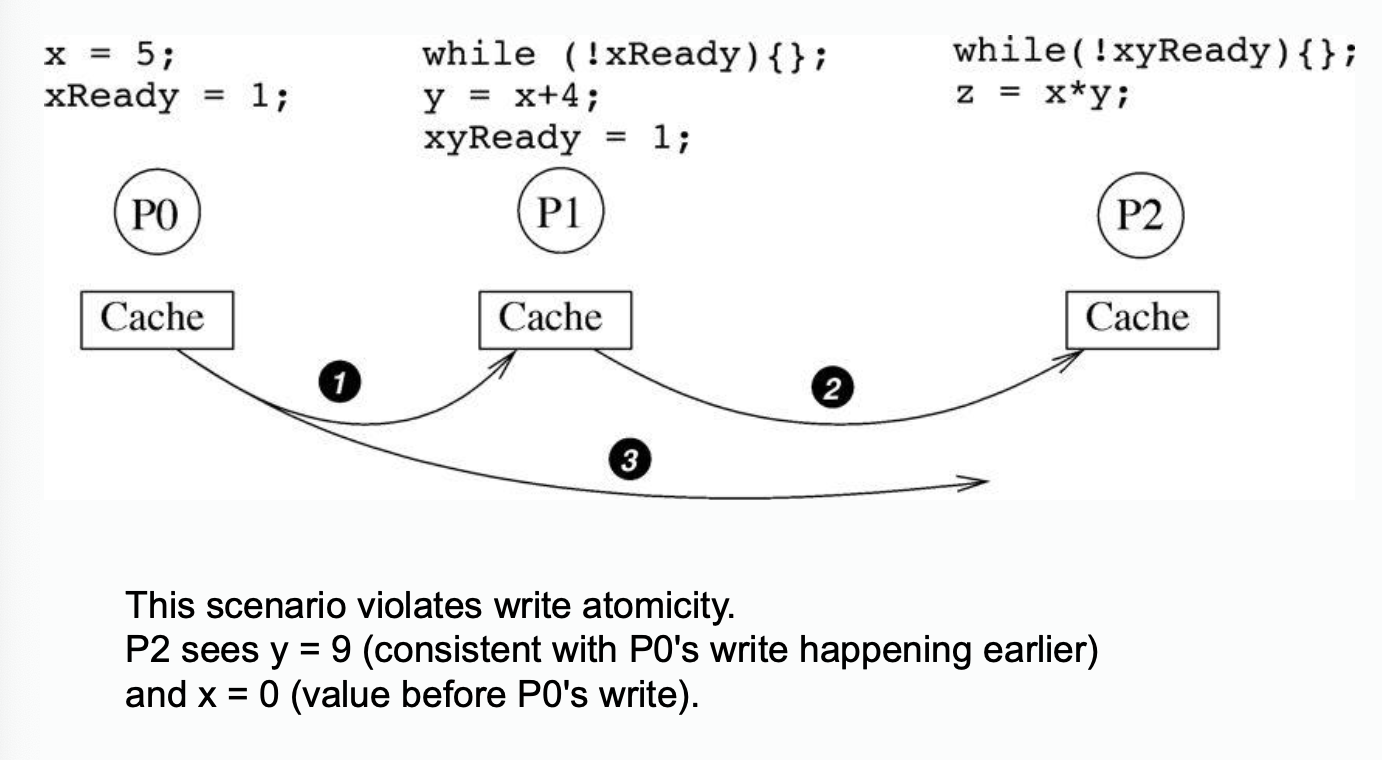

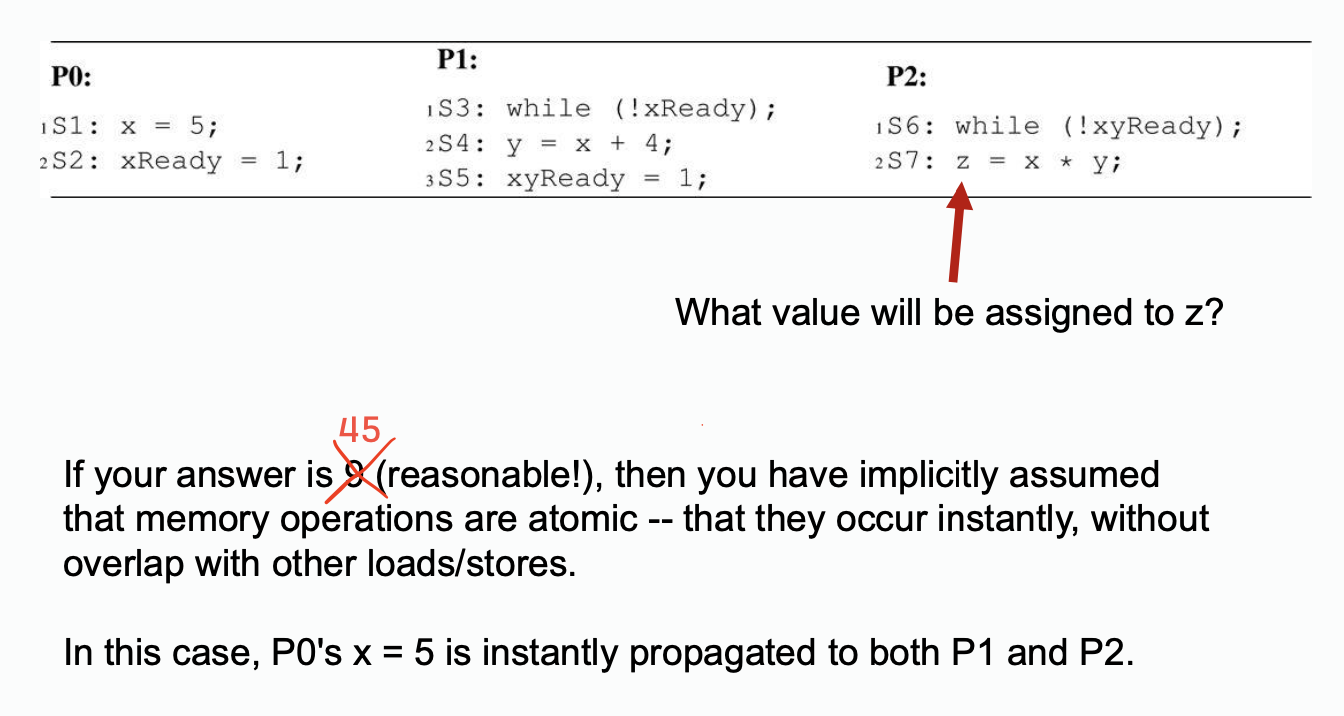

Concept: Sequential Consistency (SC) Memory operations from a processor should be performed in program order, and each should be performed atomically. This model is called Sequential Consistency (SC).

info

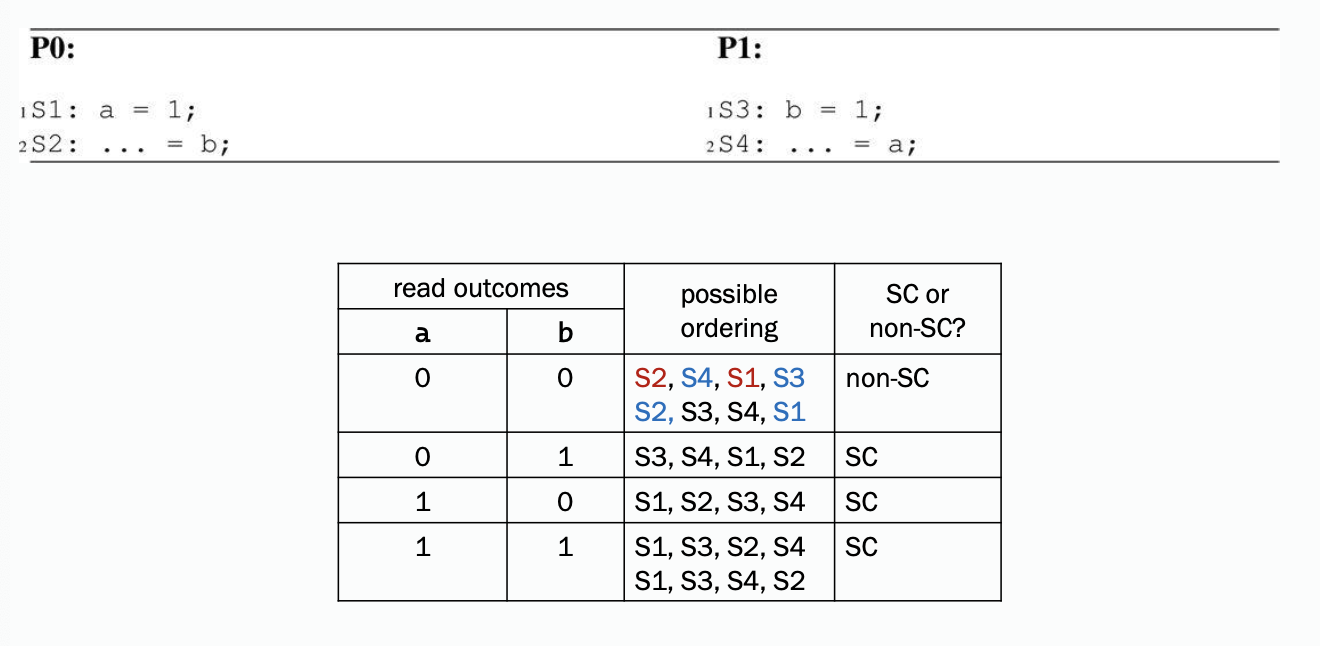

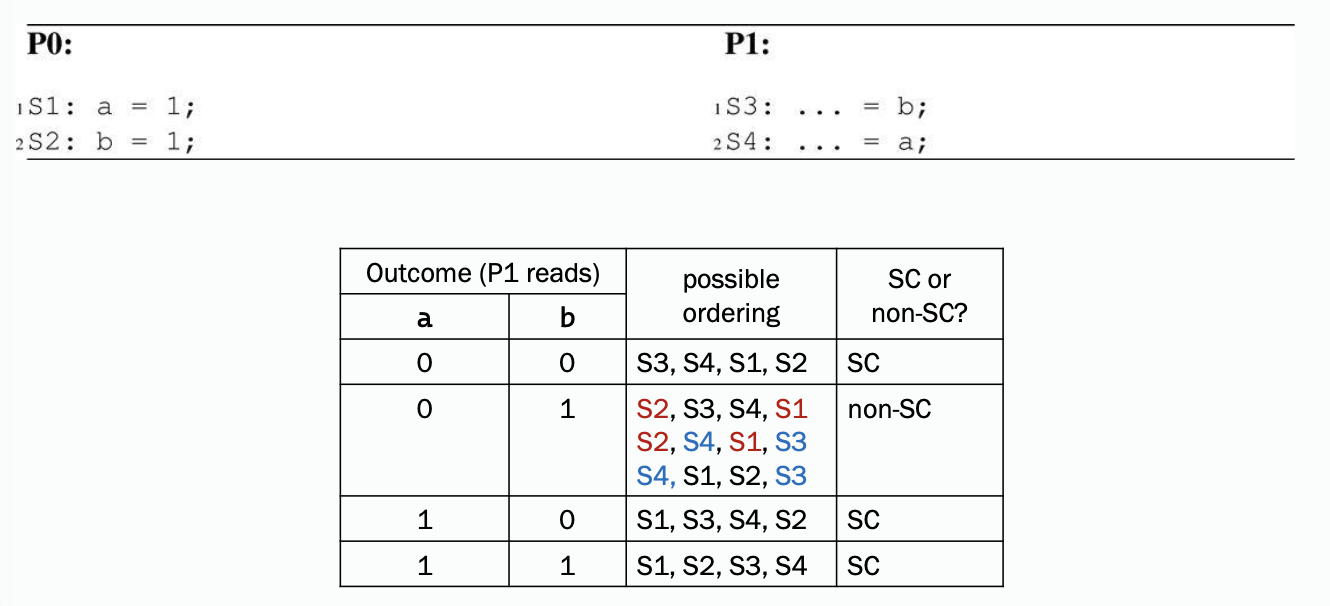

Definition: Lamport's Definition of Sequential Consistency A multiprocessor is sequentially consistent if the result of any execution is the same as if the operations of all the processors were executed in some sequential order, and the operations of each individual processor occur in this sequence in the order specified by its program.

note

note

Relaxed Memory Consistency

Recall types of consistency in Lecture - Consistency and Synchronization Problems:

• Sequential Consistency is the strongest consistency that ensures all memory operations appear to execute in a single, global order called program order, and each of the memory operation should be performed atomically.
• Weak Consistency (related to barrier a.k.a. fence) divides operations into synchronization and data operations. It ensures consistency only at synchronization points. It's faster than sequential consistency but requires explicit synchronization.
• Release Consistency (related to critical section) extends weak consistency by splitting synchronization into acquire (before critical section) and release (after critical section). It provides finer-grained control over memory synchronization, improving performance. It only ensures consistency only between acquire and release operations.

Fence (Barrier) Instruction (Safety Net)

(Memory) Fence Instruction prohibits the execution of the memory accesses following the fence until all memory accesses preceding the fence have performed.

• Store fence/barrier: If the fence only applies to stores, in which case it imposes ordering only between stores that precede it and stores that follow it, and it is referred to as store fence/barrier.
• Load fence/barrier: If the fence only applies to loads, in which case it imposes ordering only between loads that precede it and loads that follow it, and it is referred to as load fence/barrier.
• Full fence/barrier: applies on both loads and stores

note

Note that fence instruction will not directly stall the processor, it only prevents load and stores.

note

Thread 1:

x = 1;  // (Store to x)
r1 = y; // (Load from y)

Thread 2:

y = 1;  // (Store to y)
r2 = x; // (Load from x)

The desired outcome is to ensure that:

• x = 1 happens-before r2 = x.
• y = 1 happens-before r1 = y.

Without fences, a relaxed consistency model might reorder these operations. This could lead to an outcome where both r1 and r2 are 0, violating a program's desired dependency.

Minimal fencing: Thread 1:

x = 1;        // (Store to x)
SFENCE;       // Ensure store to x is visible
r1 = y;       // (Load from y)

Thread 2:

y = 1;        // (Store to y)
SFENCE;       // Ensure store to y is visible
r2 = x;       // (Load from x)

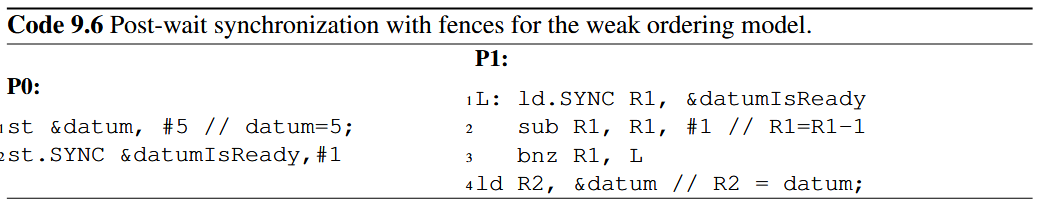

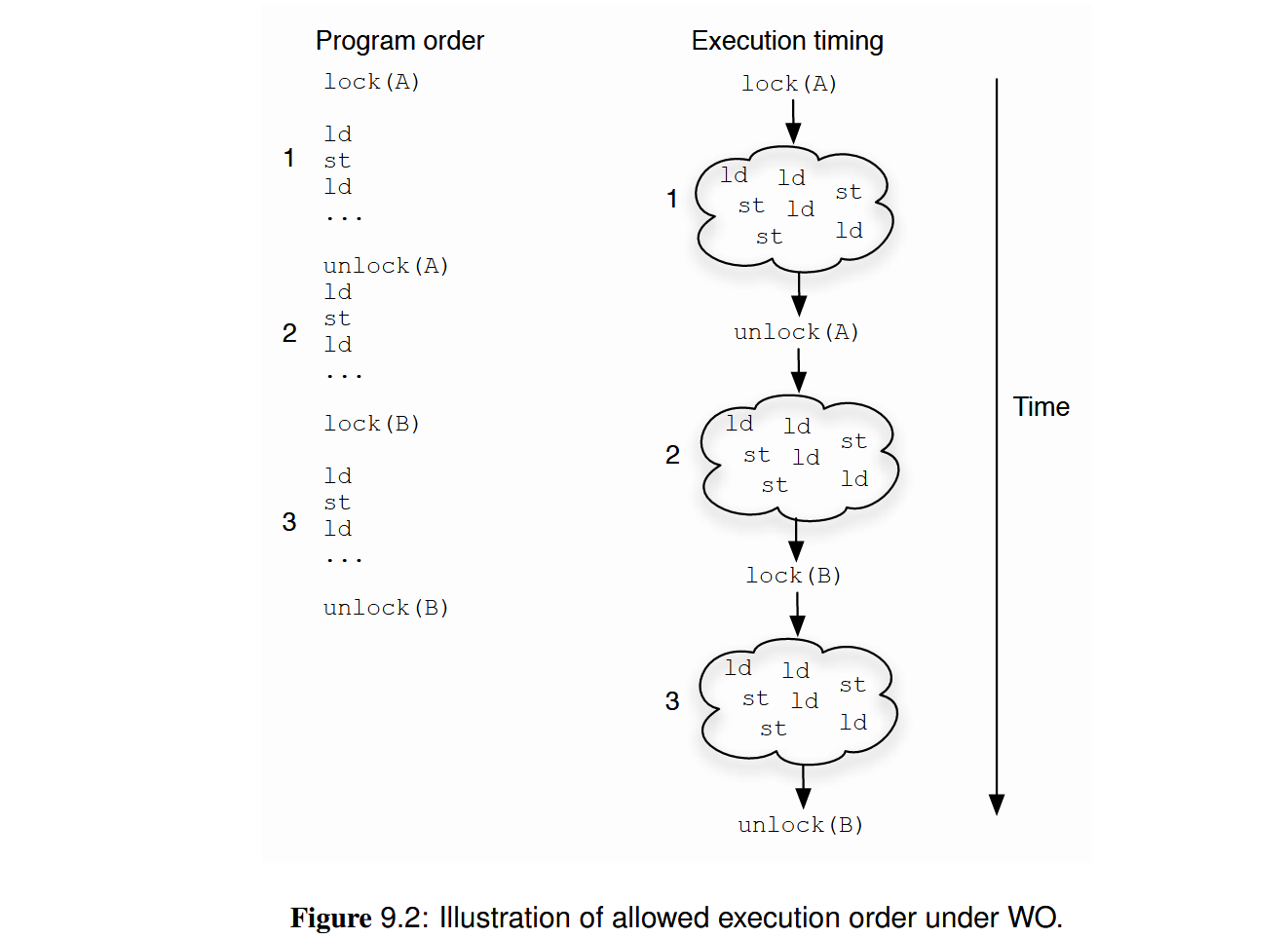

Weak Ordering

Allow any kind of loads and stores and whatever ordering, except at synchronization point.

Rules:

• Before synchronization operation can be issued to memory, all previous memory ops must be performed.
• No later memory operations can be issued to memory until synchronization operation is performed.

tip

Weak ordering is a kind of Fence Instruction combined with load and store. You can put two fences both before and after the target instruction to achieve same effect as weak ordering.

note

For P0, S1 must be executed before S2; For P1, things after S1 are not allowed to happen before S1 is executed.

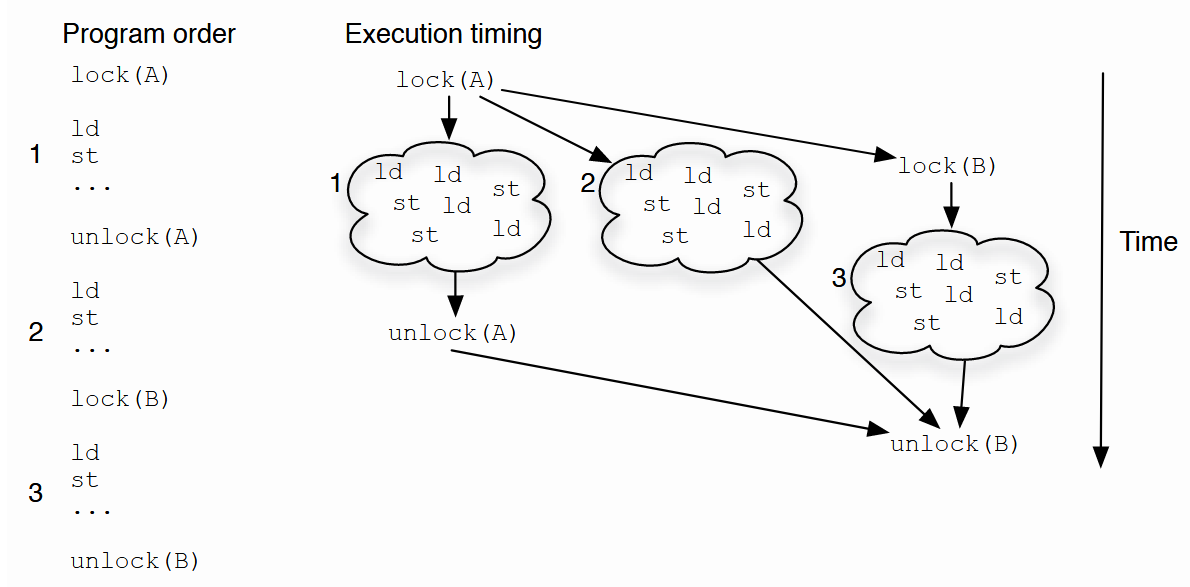

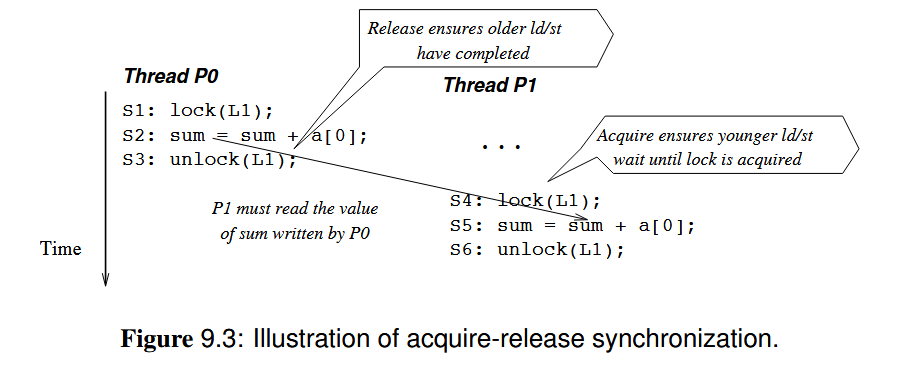

Release Consistency

Release consistency is controlled by two types of synchronization events: release and acquire:

• release: prior memory operations must be complete. (can't move LD/ST downward, past release point)
• acquire: later memory operations should not be issued. (can't move LD/St upward, prior to acquire point)

note
